Broken ecu plug, Low beam relay, Diagnose: right side fan

Discuss the new Corsaro and Avio 1200s

Broken ecu plug, Low beam relay, Diagnose: right side fan

Postby Tonto » 24 Apr 2018 11:15

Hi Guys,

My corsaro has problem with right side fan. Diagnose text: Right cool fan s.c. gnd. Any ideas what I should do next? Relay? Where is fuse for fans and is there individual fuse for both fans?

Bike does not have low beam relay for some reason. Can you help me to find one.

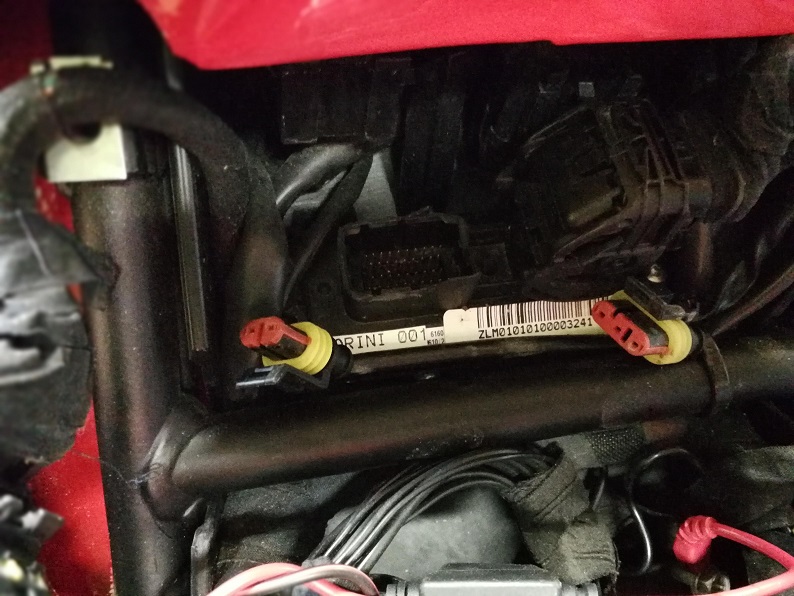

As you can see from pics connecting plug (plug to ecu) has damaged? Do you know that should there be something or just empty holes.

Toni
From Finland
Attachments
Tonto

Posts: 5
Joined: 20 Jun 2013 11:11

Re: Broken ecu plug, Low beam relay, Diagnose: right side fa

Postby backfat1187 » 24 Apr 2018 22:12

I have a colour wiring diagram but its too big a file to send via the forum and I can't remember where I downloaded it from. Can you PM me your email and I'll send it.
Fuses are under the rear seat near the ecu.
You need one of these for your low beam
http://www.vehicle-wiring-products.eu/p ... cro-relays
backfat1187

Posts: 121
Joined: 13 Mar 2011 23:11
Location: Leicester, UK

Re: Broken ecu plug, Low beam relay, Diagnose: right side fa

Postby Tonto » 26 Apr 2018 11:50

Thanks backfat1187!

Question about ecu pins. Which one is number 1 pin, 2 pin and son on...?
Attachments

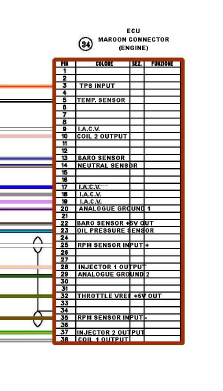

ecu pic.PNG
ecu pic.PNG (53.4 KiB) Viewed 2482 times
Tonto

Posts: 5
Joined: 20 Jun 2013 11:11

Re: Broken ecu plug, Low beam relay, Diagnose: right side fa

Postby backfat1187 » 26 Apr 2018 14:31

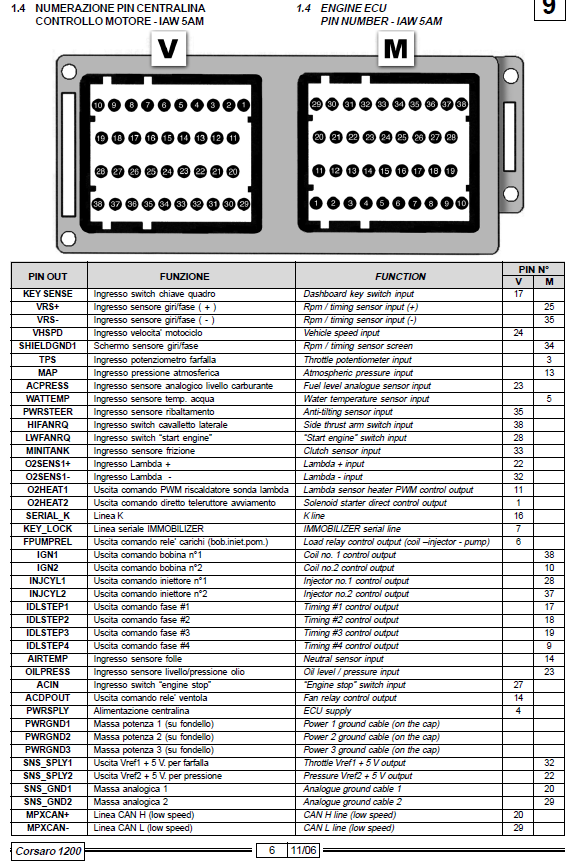

ECU pinout.PNG
ECU pinout.PNG (136.05 KiB) Viewed 2474 times
backfat1187

Posts: 121
Joined: 13 Mar 2011 23:11
Location: Leicester, UK
