Hi Bumblebee, there are various parameters which have an effect to the fuel quantity and ignition timing: - ambient temperature - engine (water) temperature - throttle position - air pressure - engine speed / rpm - front or rear cylinder - lambda value (if a lambda controlled map is used) There are ...

I had engines with the original small DID and the actual Borg Warner 98XRH2015 of the TR1613050 kit , the small DID is less noisy and has 45% less strength

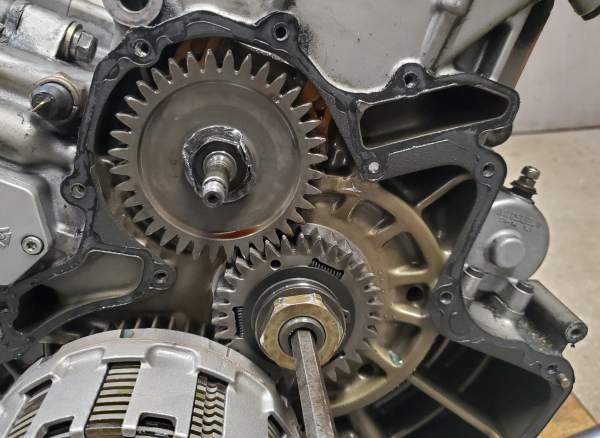

Tom, the waterpump shaft is also carrying the sprockets of the cam chains. Any noise coming from the cam chains will be lead via the shaft to the waterpump - like a loudspeaker. So first, I would check the cam chain tensioners, sometimes they stuck. Depending on the cam chain you use (small DID, wid...

Thats my own photo, but you can download the manual for the older corsaros over here from the dropbox:
viewtopic.php?t=3840

Do you have the workshop manual ? That helps a lot.
viewtopic.php?t=3840

So that one does both functions, crank position as well as speed? The - so called - phonic wheel (D) e,g. the attached sensor does generate rpm values and ignition timing, the speedo sensor is located at the swing arm. The rpm value is then sent from the ECU to the dashboard via CAN bus. Furthermor...

Hi, the stepper wires are all directly connected to the ECU, a separate stepper ground is not mentioned in the wiring diagram. One good unknown guy created a coloured wiring diagram for the Corsaro which makes it much easier to follow the wires. TPS uses a separate analogue ground together with air ...

The cam chain issue seems to be a problem of the 140hp engine only, due to the shape of the cam and the two springs per valve.

Cheers
Ebi

Wolfgang Tritsch http://w-tritsch.jimdo.com/

You may also try
http://www.motorrad-bayer.de/moto-morin ... importeur/

or
http://www.shop-hsi-custombikes.de/

or
http://www.maniac-parts.de/artikel.php?id=4509

Part No. R1613050

Cheers
Ebi

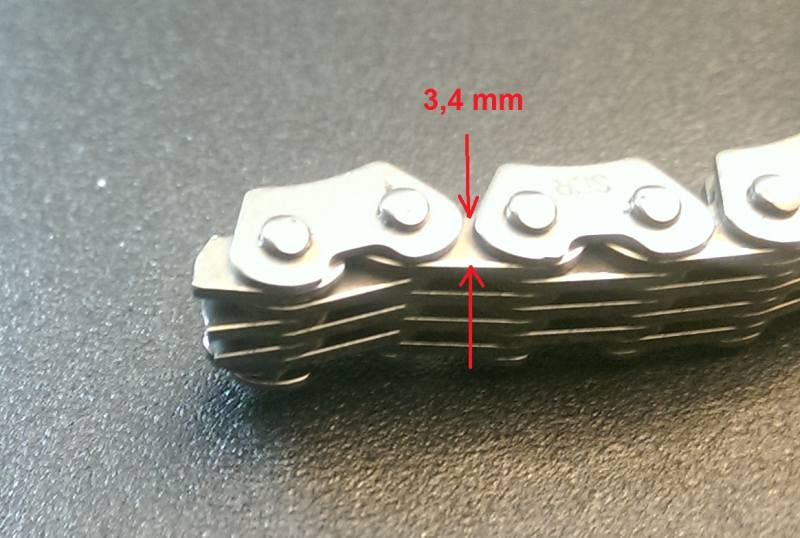

The weak point of the chains is over here and DID has just 3,4 mm whereas BWA measures 4,3 mm.
Regards,
Ebi

Hi, one of my cams looks similar - not nice, but still ok in my opinion. New cam chain kits are available, got two kits for 435 €. The new chains are not wider as the old ones :shock: (the wide ones possibly are no longer available), but the supplier is Borg Warner now. The chains are extra duty wit...

Ebi have you done a 09 map yet or one without the baffles in :mrgreen: No, had some serious engine problems last year, piston of rear cyl damaged, didn't know why. Went back to a richer map 23ECMOLCORC (which you should try if you haven't so far) but engine was still not running at full power, then...

So other variants of the 1200 have softer cams and single springs? Are there any other differences with the engine? I know not all have an oil cooler That's correct for the 120 hp engines. They have different cyl heads with smaller valves, a little bit higher compression and of course different fue...
