Rear axle washer/spacer.............

[TimClarke]

It's taken ages to sort out the discs on the 500 and I've made the rookie mistake of not recording image sof where the 2 washers you can see on the axle go and now I've forgotten

It would be really handy if anyone could tell me and sa


ve me a heap of experimenting!

Thank you

[TimClarke]

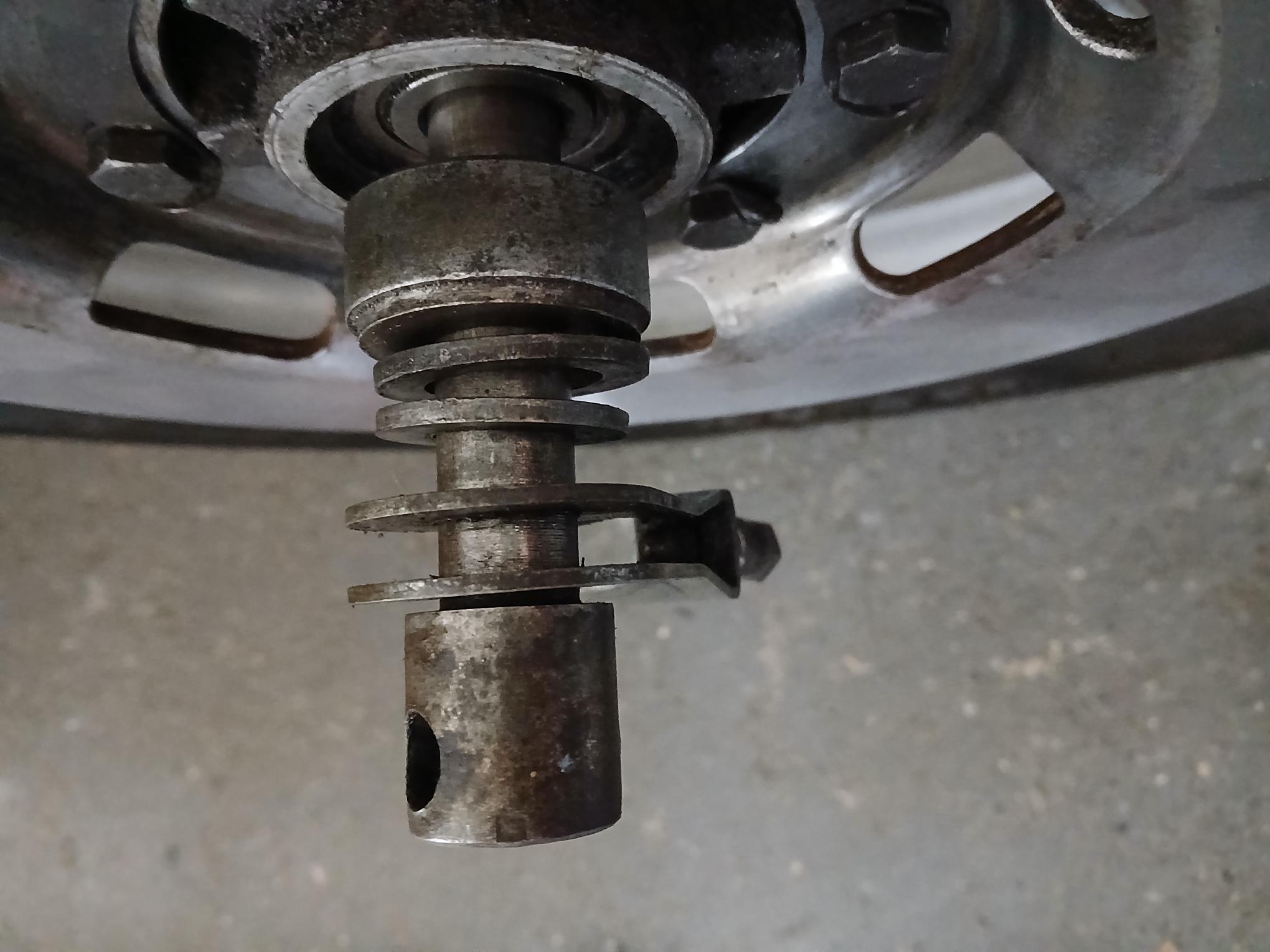

These images show a bit clearer the items that Id like to check where they go on the axle please!



[Tim]

Try the 500 parts book for an exploded diagram - there should be one in the library

['It must be a .....']

The washers go under the nut on the left side and the outer end of the long through spindle on the right/drive side

[TimClarke]

Cheers, and does it matter which way round the spacer goes?

Tim

[TimClarke]

Try the 500 parts book for an exploded diagram - there should be one in the library

Cheers, Ive got that but it's not entirely clear

['It must be a .....']

'Cheers, and does it matter which way round the spacer goes?'

Yes, the smaller diameter end fits in the bearing oil seal - note there is no oil seal fitted in your photo

[TimClarke]

Oh dammit I suspect I've got a missing part then - any ideas where i could get one of those oil seals from?!

[TimClarke]

Oh dammit I suspect I've got a missing part then - any ideas where i could get one of those oil seals from?!

[Steve Brown]

The parts list will tell you the sizes usually and any bearing stockists should have them. All common sizes.

[TimClarke]

I have got a parts list I'll have a look cheers

[TimClarke]

'Cheers, and does it matter which way round the spacer goes?'

Yes, the smaller diameter end fits in the bearing oil seal - note there is no oil seal fitted in your photo

hAVING LOOKED AT THE PARTS DIAGRAM it looks like there's already a seal on the inside of the circlip and it doesn't show another one?
